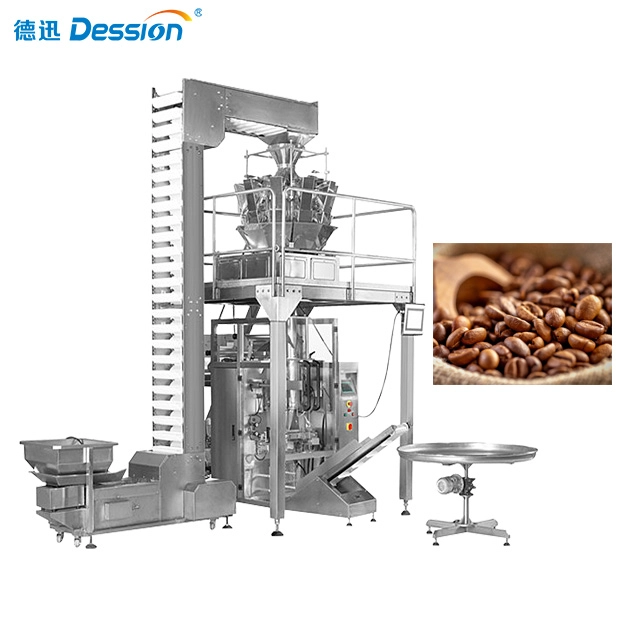

High speed automatic coffee bean packaging machine
- Model: DS-420AZ
- Measuring range: 150-1500ml
- Roll width: Max.420mm
- Filling speed: 5~60 bags/min
- Bag size: Length: 80~300mm Width: 60~200mm
- Film roll diameter: max. 320mm
- Film thickness: 0.04-0.08mm
- Power: 220V, 50Hz, 2.2kVA
High speed automatic coffee bean packaging machine
Product introduction:
An all-in-one filling machine that weighs, fills, seals and date code seals. Save production floor space and labor cost. Mix is a good design in food packaging, customers weigh and pack different products such as rice, snacks, potato chips, beans and so on.
The cost of this machine is less than that of a complete bagging system for plants that need to get up and running quickly on a lower budget.
device specifications:
| machine frame | Made entirely of #304 stainless steel or carbon steel body |
| touch screen | 10 inch touch screen to operate both weighing and packing machine, multi-language screen. |
| weight head | 10 |
| Hopper capacity | 1.6 liters |
| packing speed | Maximum 50 bags per minute |
| Weight accuracy | -0.1-1g |
| The maximum width of the film | 420mm, film laminated |

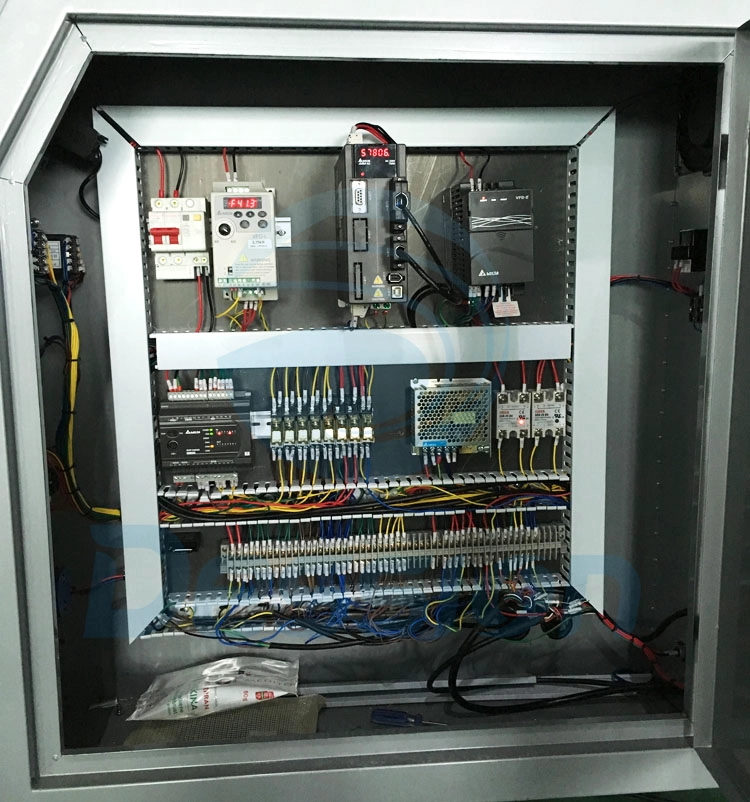

| control system | MCU control system on the scale and PLC on the packing machine |
| bag size | Length 60-230mm, width 60-180mm |
| Energy | 220V, 50/60Hz 2.22kW |
Device details:

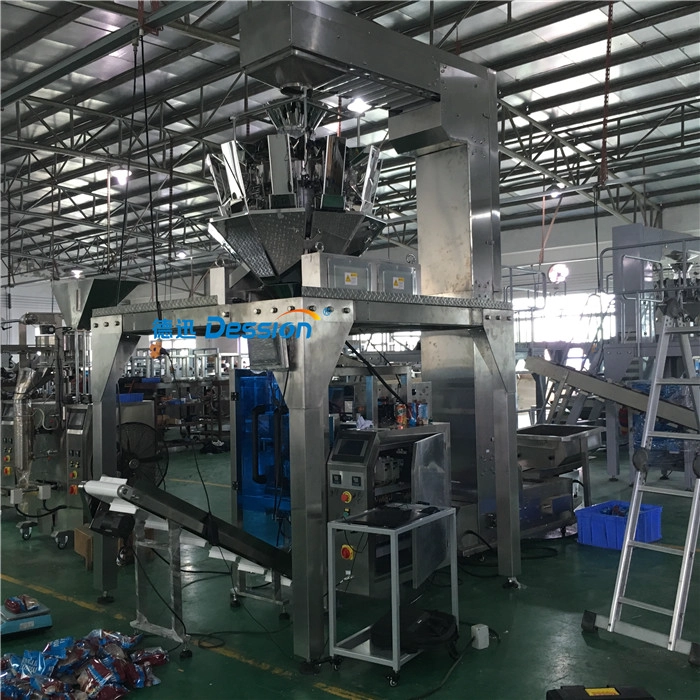

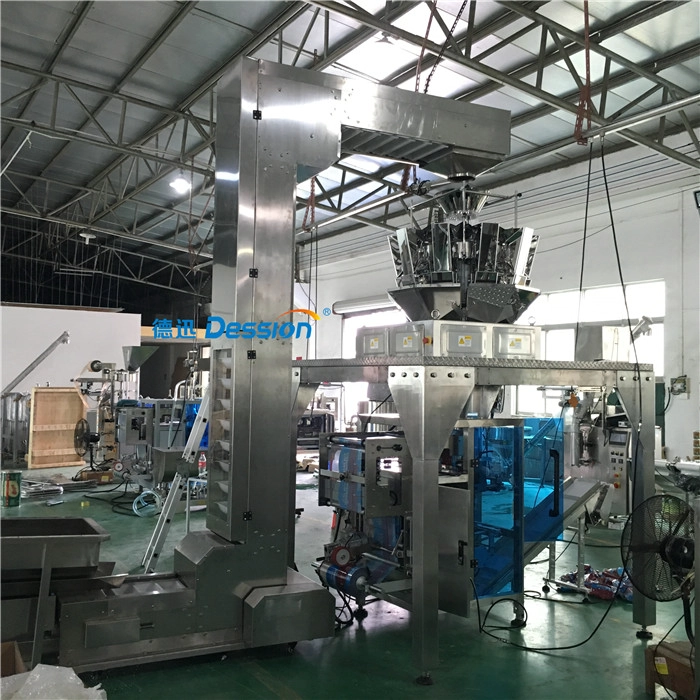

Composite machine parts:
1. Bag making machine
With a super touch screen to adjust the parameters of plastic bags
2 multihead weigher (material weighing)
2/4 linear scale, 10/14/16 head scale, different materials suggest different scale.
3-Material conveyor
Z type elevator/single bucket elevator/large inclined elevator
4. Optional item
Support platform / Finished product conveyor / Bag forming machine
1. Bag making machine
With a super touch screen to adjust the parameters of plastic bags
2 multihead weigher (material weighing)
2/4 linear scale, 10/14/16 head scale, different materials suggest different scale.
3-Material conveyor
Z type elevator/single bucket elevator/large inclined elevator
4. Optional item
Support platform / Finished product conveyor / Bag forming machine

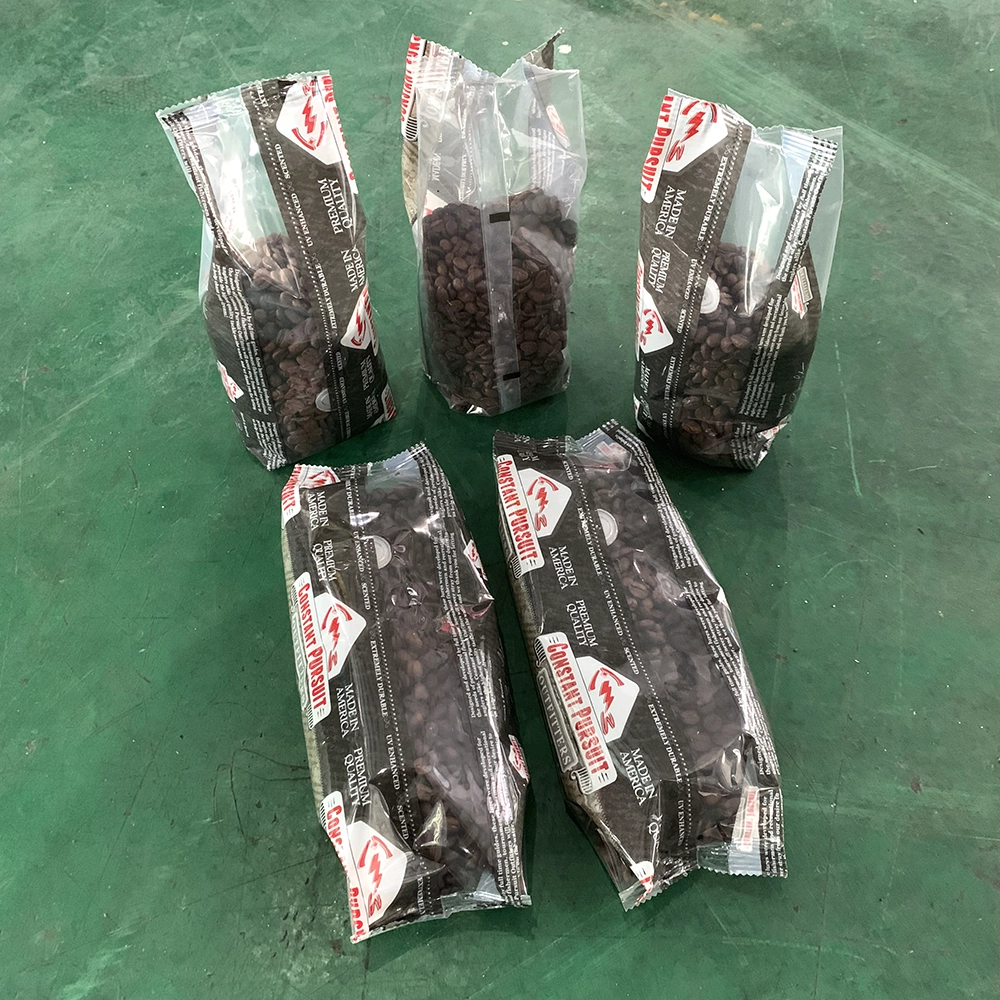

bag sample
machine functions
1.New design and advanced technology with beautiful appearance and reasonable structure.
2. Imported PLC computer control system and color touch screen enable easy operation.
3. Imported film conveying system and color mark sensor realize accurate positioning and beautiful package.Outside film positioning makes film installation easier and faster.
4.Diversity of bags provide customers with pillow bags, corner bags, hanging bags, tie bags, etc.
5. All processes including material conveying, weighing, packaging, bagging, date printing and finished goods conveying are automatically realized.
6. Filling speed and bag length can be adjusted to some extent without further adjustment and parts change.
7.Automatic correct function, saving time and packaging materials.
2. Imported PLC computer control system and color touch screen enable easy operation.
3. Imported film conveying system and color mark sensor realize accurate positioning and beautiful package.Outside film positioning makes film installation easier and faster.
4.Diversity of bags provide customers with pillow bags, corner bags, hanging bags, tie bags, etc.
5. All processes including material conveying, weighing, packaging, bagging, date printing and finished goods conveying are automatically realized.
6. Filling speed and bag length can be adjusted to some extent without further adjustment and parts change.
7.Automatic correct function, saving time and packaging materials.
Main machine parts

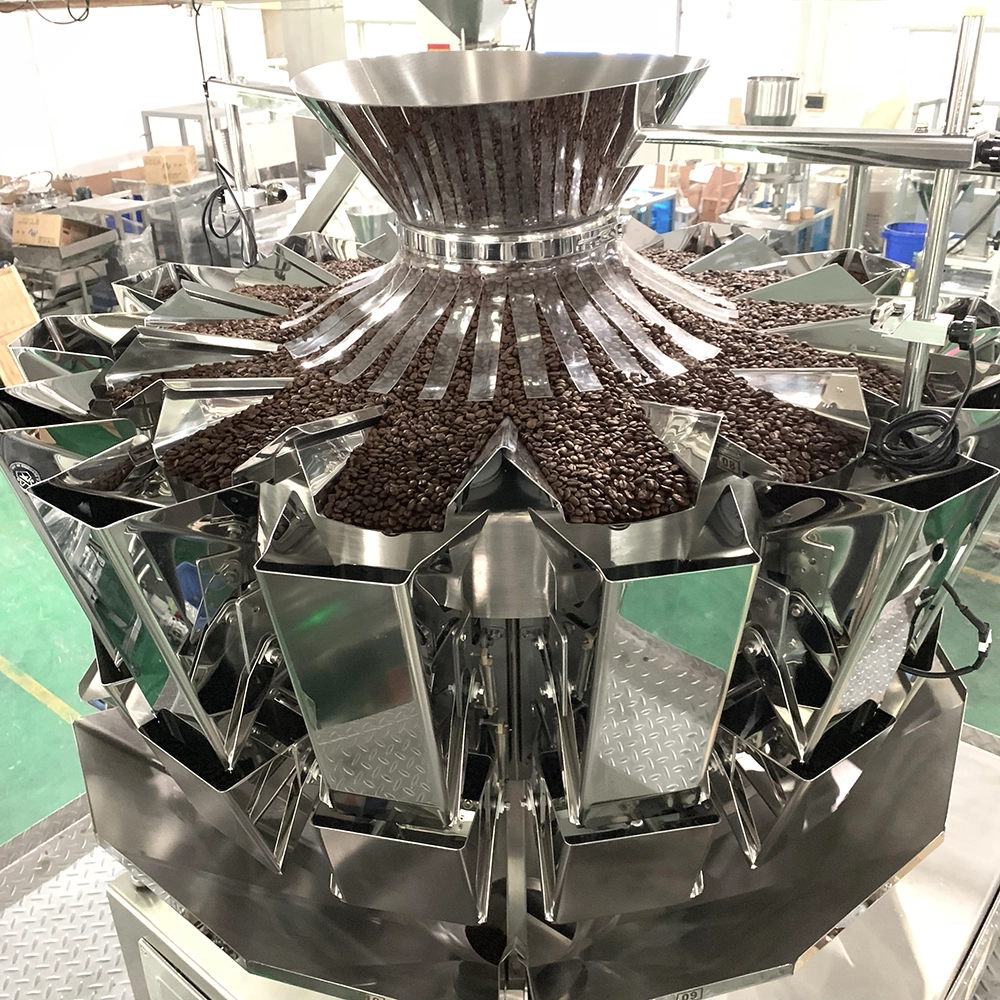

Noun: Multihead weigher
It is suitable for weighing granules, slices, rolls or irregular materials such as candy, seeds, jelly, potatoes, coffee granules, peanuts, puffed food, biscuits, chocolate, nut, yogurt, pet food, frozen food, etc. Also suitable for weighing small appliances and plastic components
Main machine parts

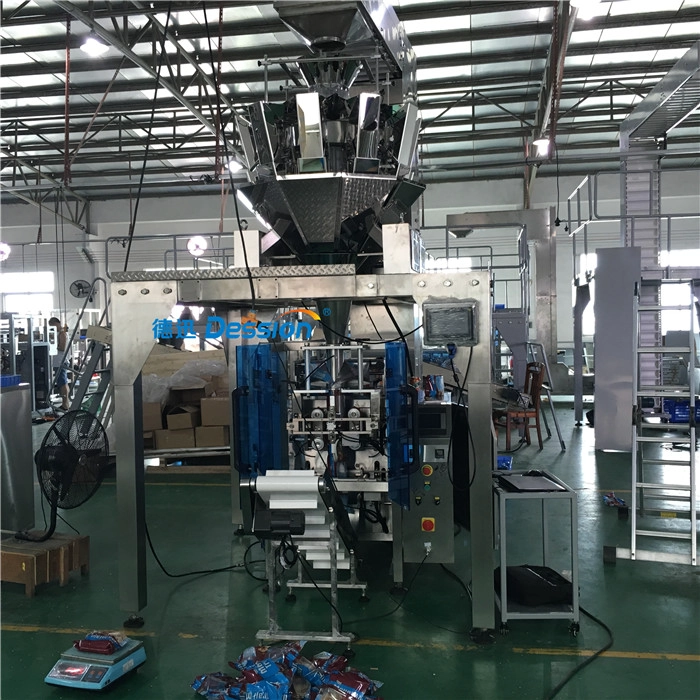

Noun: vertical packing machine
Digital display with digital setting and flexible operation; Imported PLC control system and color touch screen, easy operation; PID independent temperature control, more suitable for different packaging materials
Digital display with digital setting and flexible operation; Imported PLC control system and color touch screen, easy operation; PID independent temperature control, more suitable for different packaging materials
Optional machine spare parts
Noun: Z type elevator
Available for lifting formable and unformable materials such as fried potato chips, shrimp cracker, crispy rice, minerals, medicine, etc.
Available for lifting formable and unformable materials such as fried potato chips, shrimp cracker, crispy rice, minerals, medicine, etc.
Optional machine spare parts
Noun: Support platform
Adopting imported miniature motor, it features low noise and long service life. It can transport the finished goods to the platform, and reduce the waste during packing, which can make the machine run more smoothly.
Adopting imported miniature motor, it features low noise and long service life. It can transport the finished goods to the platform, and reduce the waste during packing, which can make the machine run more smoothly.
 |
package and shipment
High speed automatic coffee bean packaging machine
