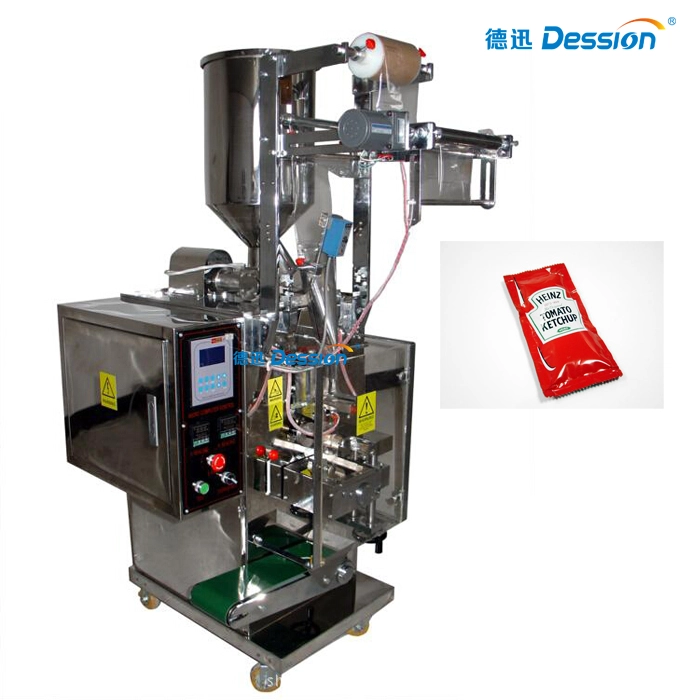

Automatic ketchup sachet filling packing machine
- Model: DS-200Y
- Measuring: Water Pump Measuring
- Filling Range: 1-100ml
- Bag Length: 30~180mm
- Bag Width: 15~100mm
- Packaging Speed: 30~80bags/min
- Power: 220V,50HZ,1.2KVA
- Roll Film Width & Diameter:Max: (W)30-220mm,(D)300mm
- Film Material Composite Material: OPP/CPP,OPP/CE,MST/PE/PET/PE
- Machine Size: (L)640*(W)700*(H)1580mm
- Machine Weight: 300KG

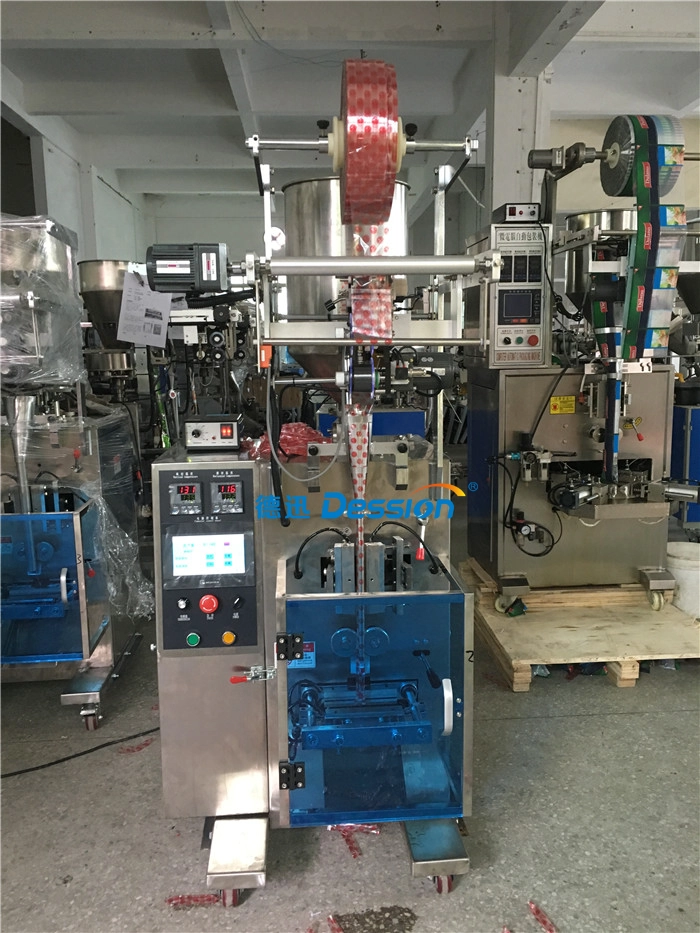

Automatic ketchup sachet filling packing machine

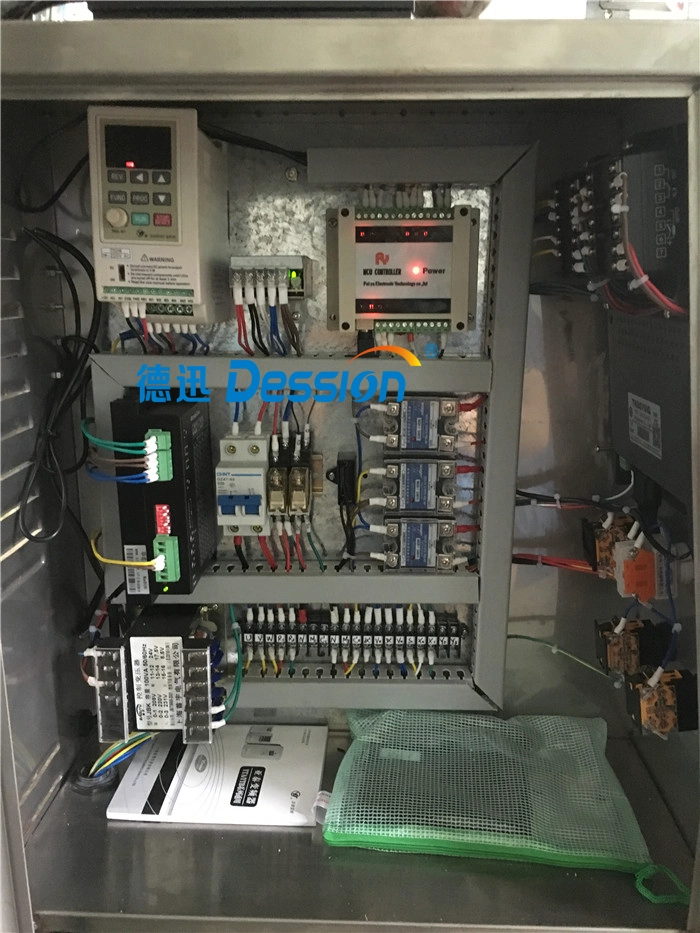

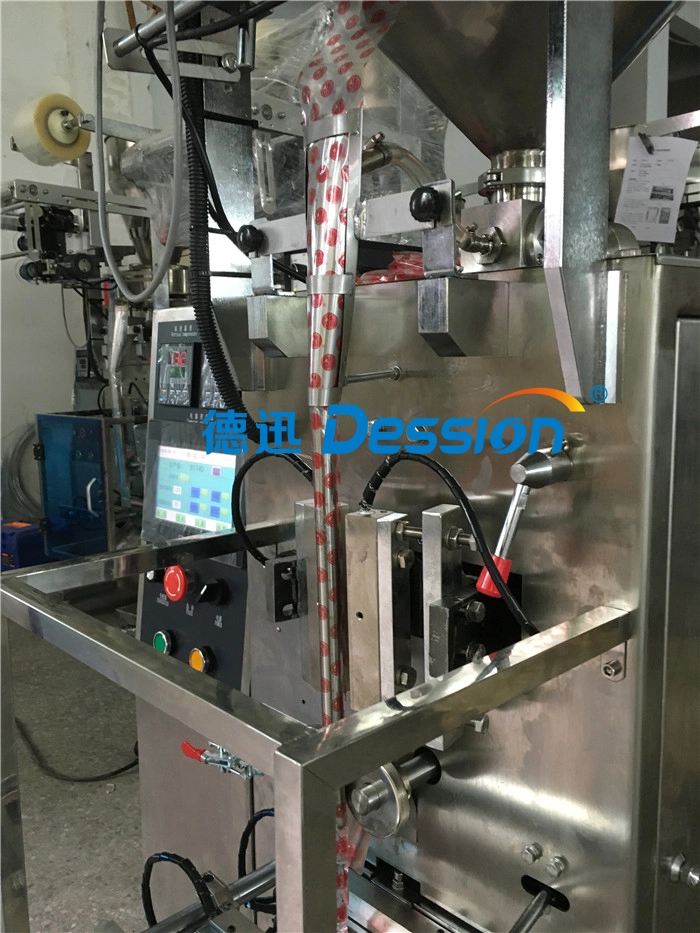

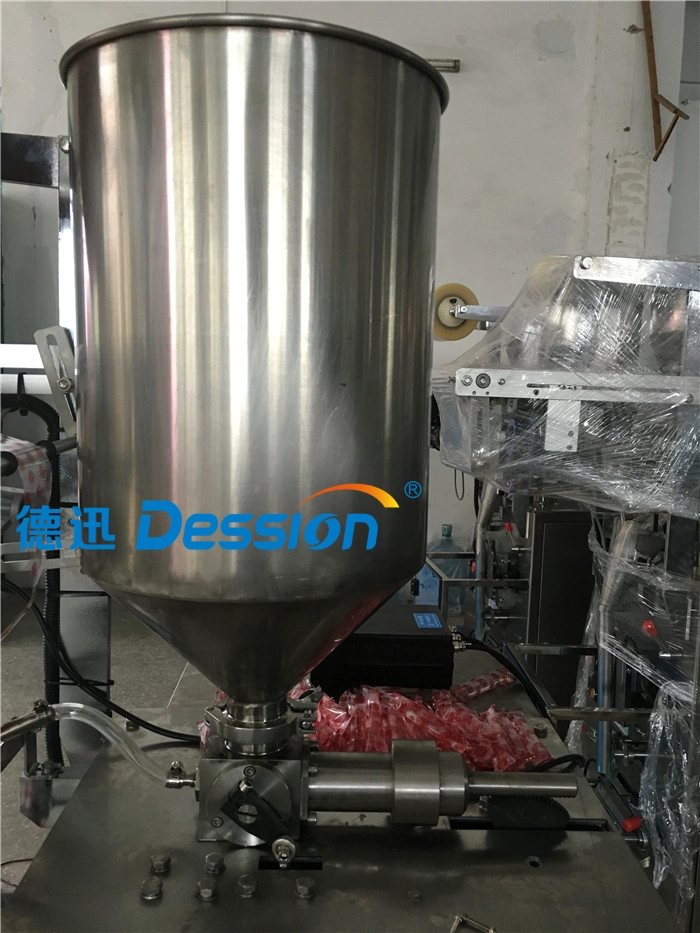

Machine deatils show:

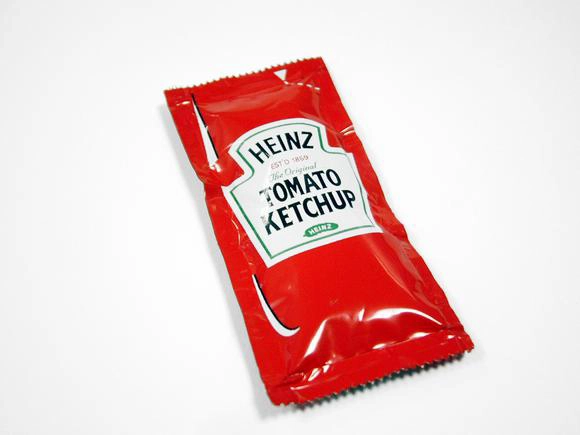

Application:
Dession small Liquid / Sauce / Pasty Filling Packaging machine
widely applied for food, Medicine, chemical liquid products such as Ketchup, flavoring, Sauce, Pasty, Shampoo, cream, body wash liquid and so on.
Dession small Liquid / Sauce / Pasty Filling Packaging machine
widely applied for food, Medicine, chemical liquid products such as Ketchup, flavoring, Sauce, Pasty, Shampoo, cream, body wash liquid and so on.


Function & Characteristic:
1.Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;

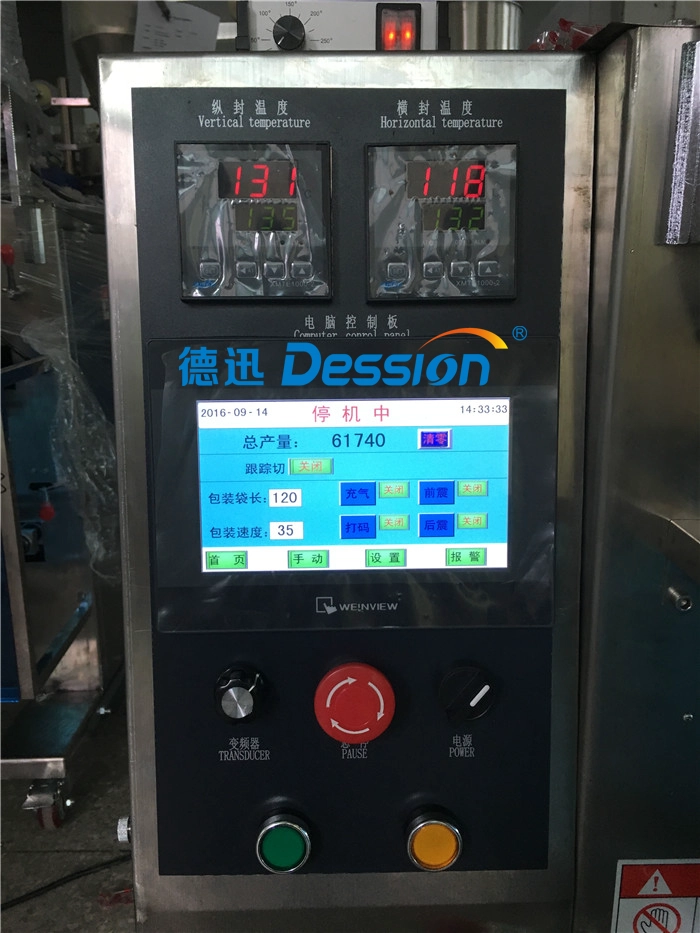

2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintainance;
6. DS-200Y equiped with pump metering device, easily adjust the capacity of the packaging when machine running, reduce the loss of material and improve the productivity;
7. Alarming function for specific output, Automatic display of packaging speed;
8. Optional ink roll printer for the batch number and expiration date;
9. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools.
1.Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintainance;
6. DS-200Y equiped with pump metering device, easily adjust the capacity of the packaging when machine running, reduce the loss of material and improve the productivity;
7. Alarming function for specific output, Automatic display of packaging speed;
8. Optional ink roll printer for the batch number and expiration date;
9. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools.
Machine packaging and shipping:
For packaging
Dession will erase all components, packed to begin with the movie, then putting in the case of plywood
(Fumigation free)
For shipping
We can offer you the load, regardless of the sea, by air or by express, also you can appropriate the agent for shipping.
For packaging
Dession will erase all components, packed to begin with the movie, then putting in the case of plywood
(Fumigation free)
For shipping
We can offer you the load, regardless of the sea, by air or by express, also you can appropriate the agent for shipping.


After sales service:

Company Introduction:

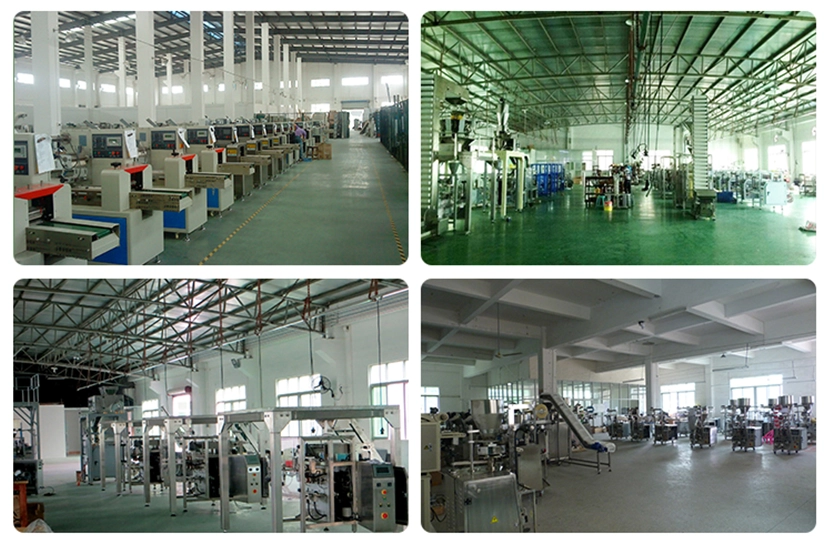

Workshop shows:

Foshan Dession Packaging Machinery Co., Ltd.
Tel:+86 133 6030 5717
Contact Person:Alisa
PDF Show:PDF
