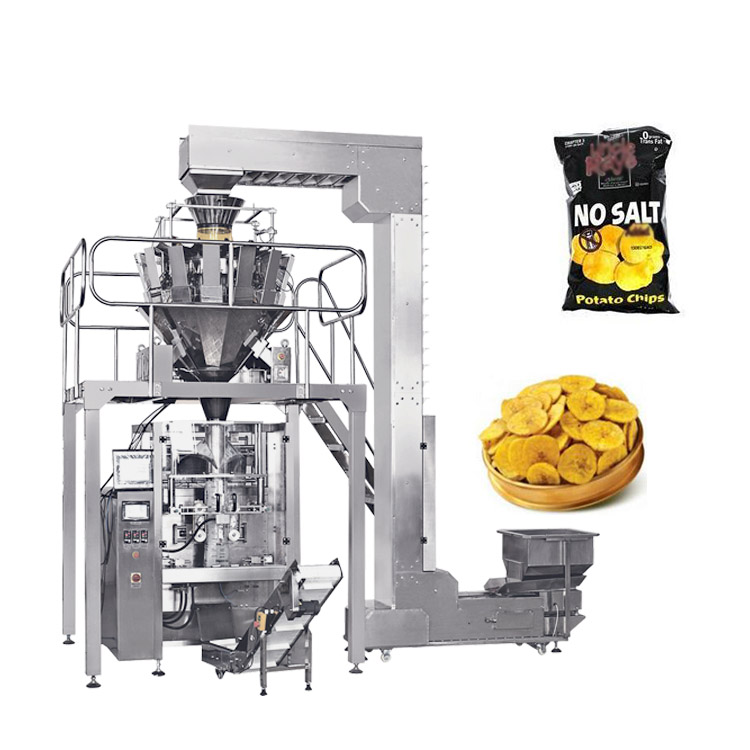

Automatic Banana Chips Filling And Cutting Baking Machine With Multi Heads Weigher

  • Model: DS-420AZ
  • Measuring range: 150-1500ml
  • Roll width: Max.420mm
  • Filling speed: 5~60 bags/min
  • Bag size: Length: 80~300mm Width: 60~200mm
  • Film roll diameter: max. 320mm
  • Film thickness: 0.04-0.08mm
  • Power: 220V, 50Hz, 2.2kVA

Automatic Banana Chips Packing Machine For Banana Chips Packing And Cutting With Multi-head Weigher








Product introduction:

An all-in-one filling machine that weighs, fills, seals and date code seals. Save production floor space and labor cost. Mix is ​​a good design in food packaging, customers weigh and pack different products such as rice, snacks, potato chips, beans and so on.

The cost of this machine is less than that of a complete bagging system for plants that need to get up and running quickly on a lower budget.

device specifications:

machine frame Made entirely of #304 stainless steel or carbon steel body
touch screen 10 inch touch screen to operate both weighing and packing machine, multi-language screen.
weight head 10
Hopper capacity 1.6 liters
packing speed Maximum 50 bags per minute
Weight accuracy -0.1-1g
The maximum width of the film 420mm, film laminated
control system MCU control system on the scale and PLC on the packing machine
bag size Length 60-230mm, width 60-180mm
Energy 220V, 50/60Hz 2.22kW
Device details:

Composite machine parts:
1. Bag making machine
With a super touch screen to adjust the parameters of plastic bags

2 multihead weigher (material weighing)
2/4 linear scale, 10/14/16 head scale, different materials suggest different scale.

3-Material conveyor
Z type elevator/single bucket elevator/large inclined elevator

4. Optional item
Support platform / Finished product conveyor / Bag forming machine
bag sample

machine functions

1.New design and advanced technology with beautiful appearance and reasonable structure.

2. Imported PLC computer control system and color touch screen enable easy operation.

3. Imported film conveying system and color mark sensor realize accurate positioning and beautiful package.Outside film positioning makes film installation easier and faster.

4.Diversity of bags provide customers with pillow bags, corner bags, hanging bags, tie bags, etc.

5. All processes including material conveying, weighing, packaging, bagging, date printing and finished goods conveying are automatically realized.

6. Filling speed and bag length can be adjusted to some extent without further adjustment and parts change.

7.Automatic correct function, saving time and packaging materials.







Main machine parts

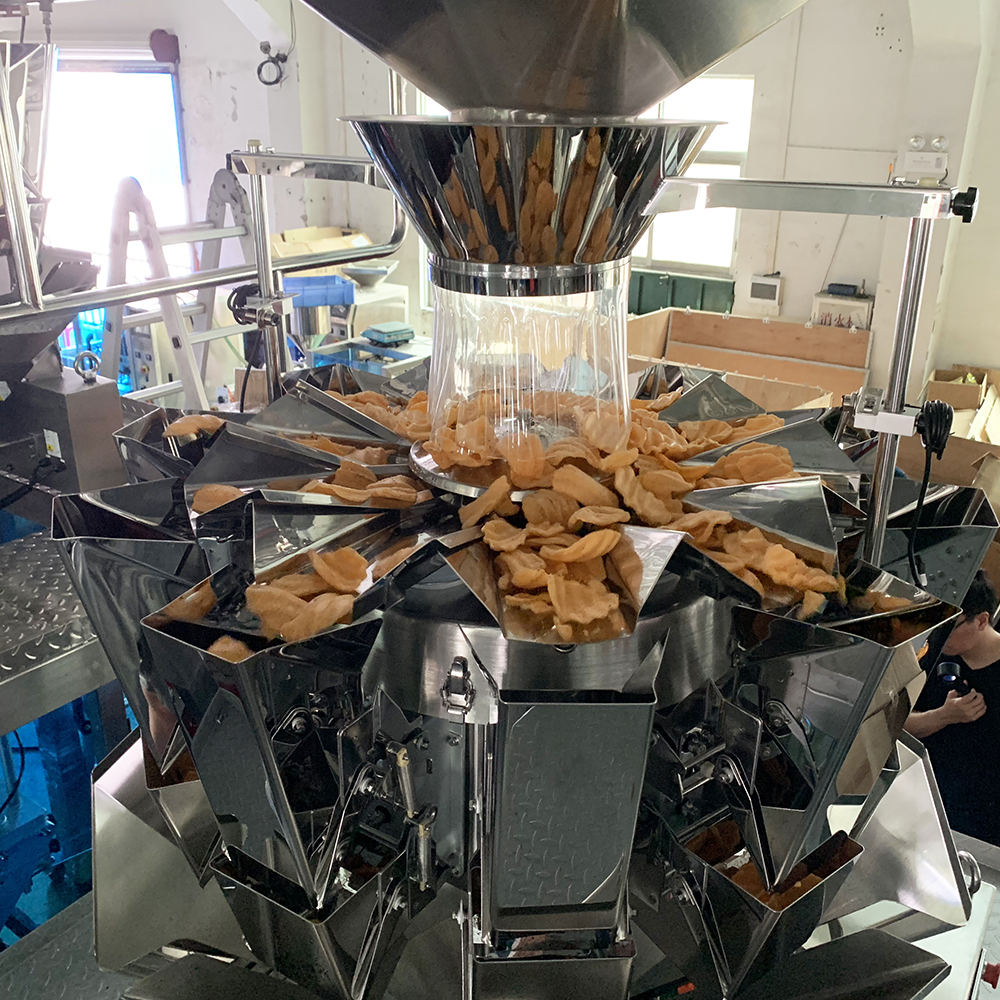

Noun: Multihead weigher

It is suitable for weighing granules, slices, rolls or irregular materials such as candy, seeds, jelly, potatoes, coffee granules, peanuts, puffed food, biscuits, chocolate, nut, yogurt, pet food, frozen food, etc. Also suitable for weighing small appliances and plastic components





Main machine parts

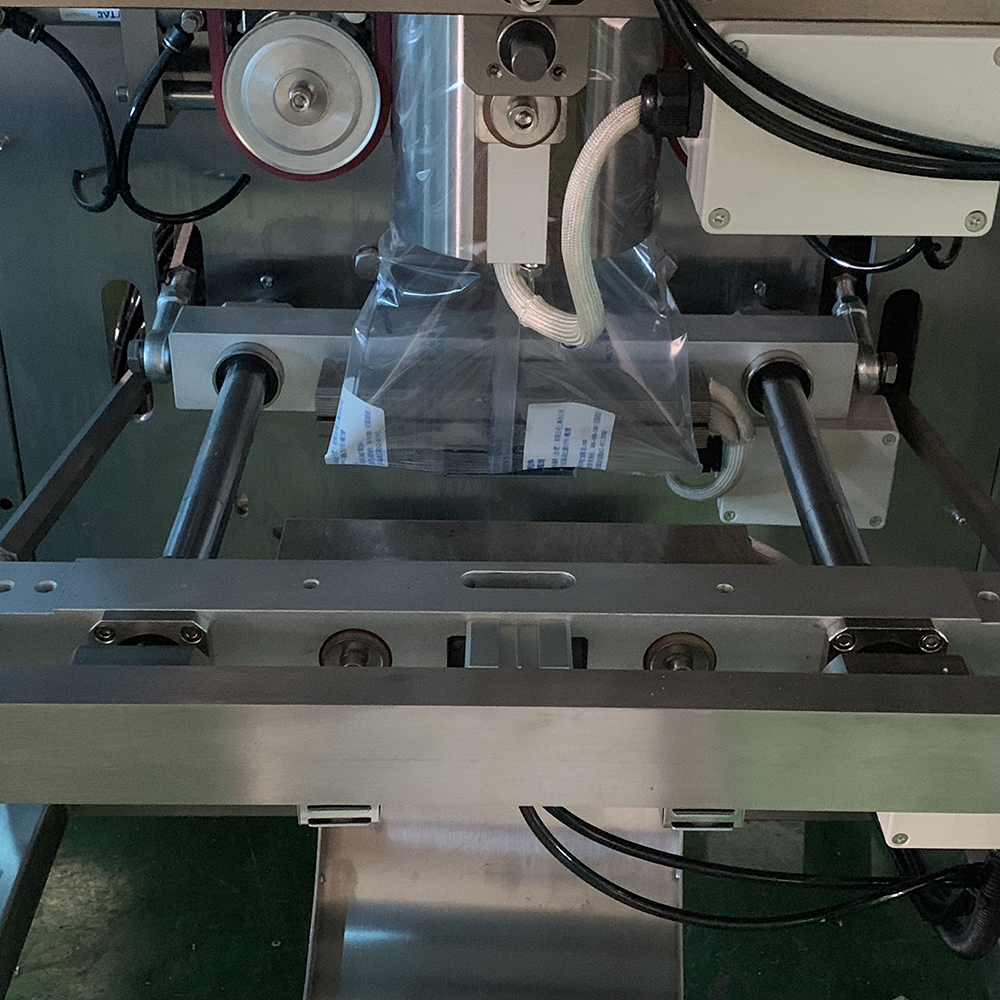

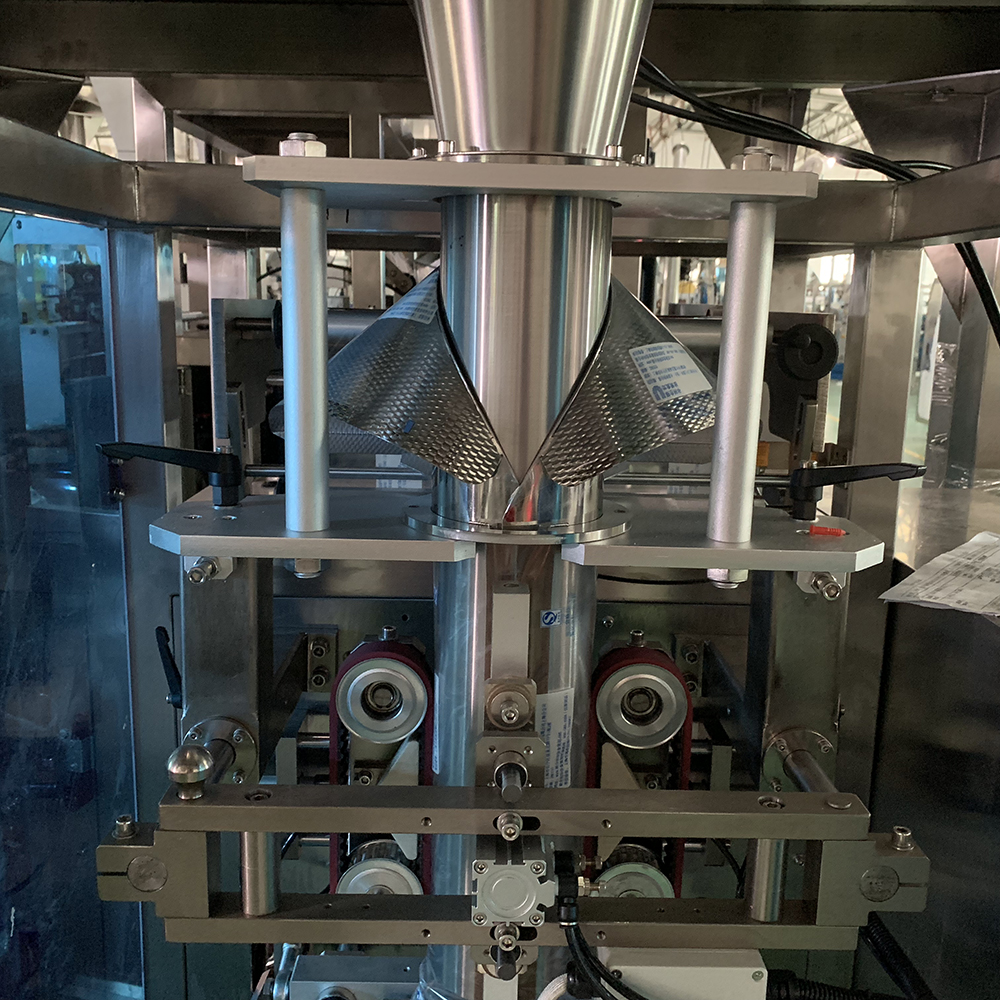

Noun: vertical packing machine
Digital display with digital setting and flexible operation; Imported PLC control system and color touch screen, easy operation; PID independent temperature control, more suitable for different packaging materials



Optional machine spare parts

Noun: Z type elevator
Available for lifting formable and unformable materials such as fried potato chips, shrimp cracker, crispy rice, minerals, medicine, etc.





Optional machine spare parts

Noun: Support platform
Adopting imported miniature motor, it features low noise and long service life. It can transport the finished goods to the platform, and reduce the waste during packing, which can make the machine run more smoothly.

package and shipment





Automatic Banana Chips Packing Machine For Banana Chips Packing And Cutting With Multi-head Weigher
